100004 | CoverMate® I / I Eco Replacement Pivot Arm

New

100004 | CoverMate® I / I Eco Replacement Pivot Arm

Name: 100004 | CoverMate® I / I Eco Replacement Pivot Arm
Brand: Leisure Concepts™
SKU: 100004
Price: 38.25 USD
Availability: InStock

Type: Lifter Replacement Part

SKU: 100004

$38.25

Shipping calculated at checkout.

Low stock

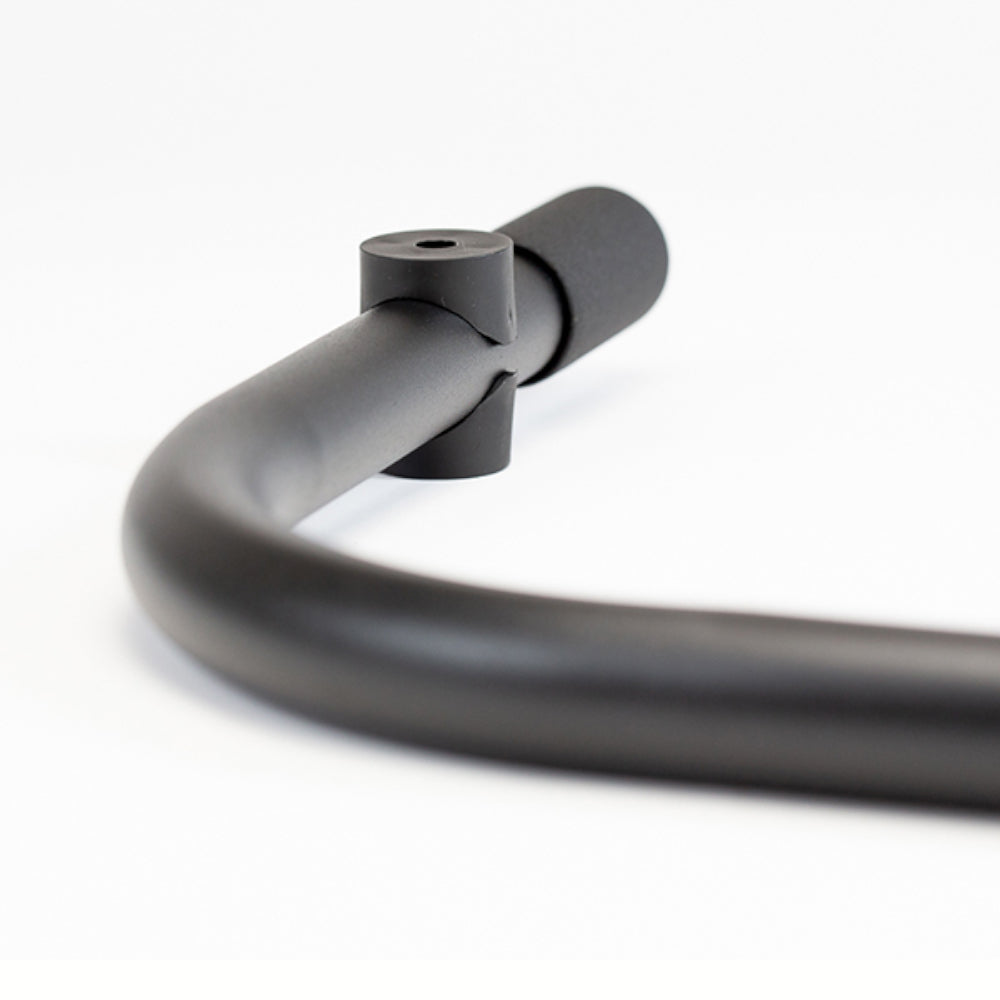

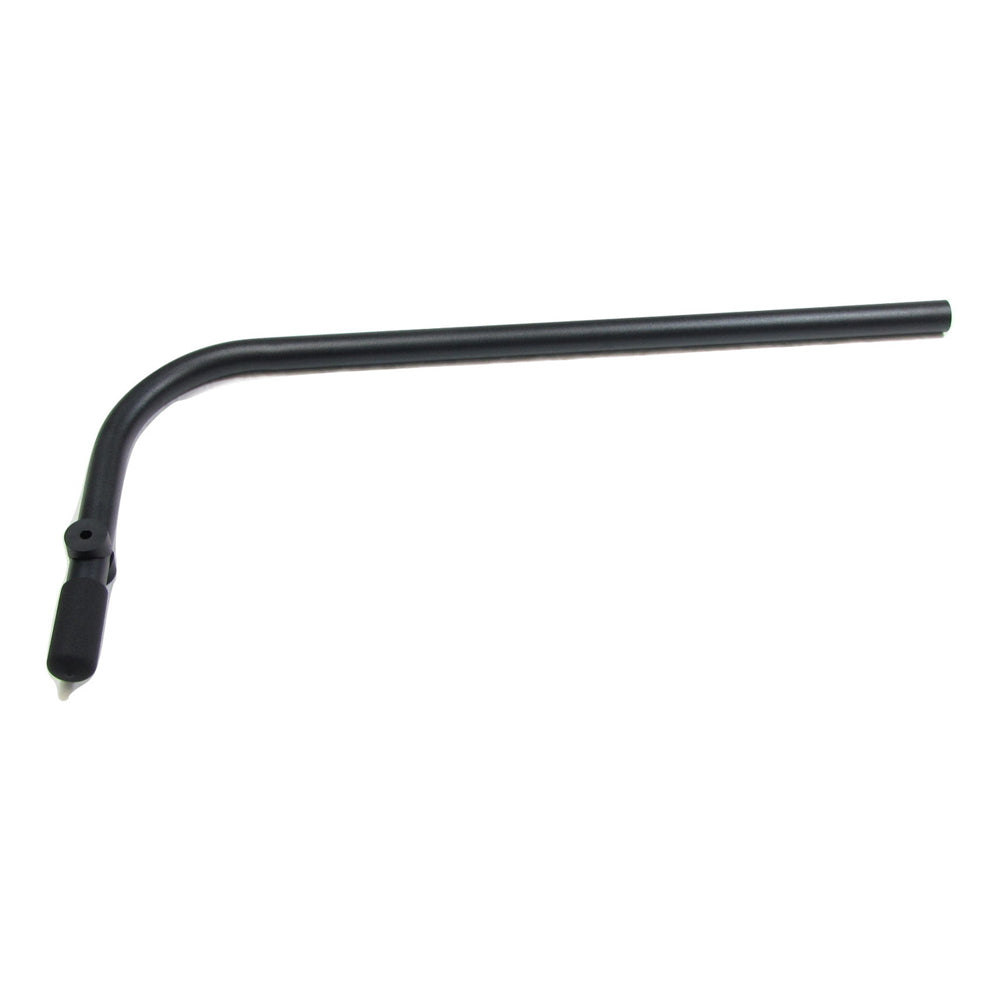

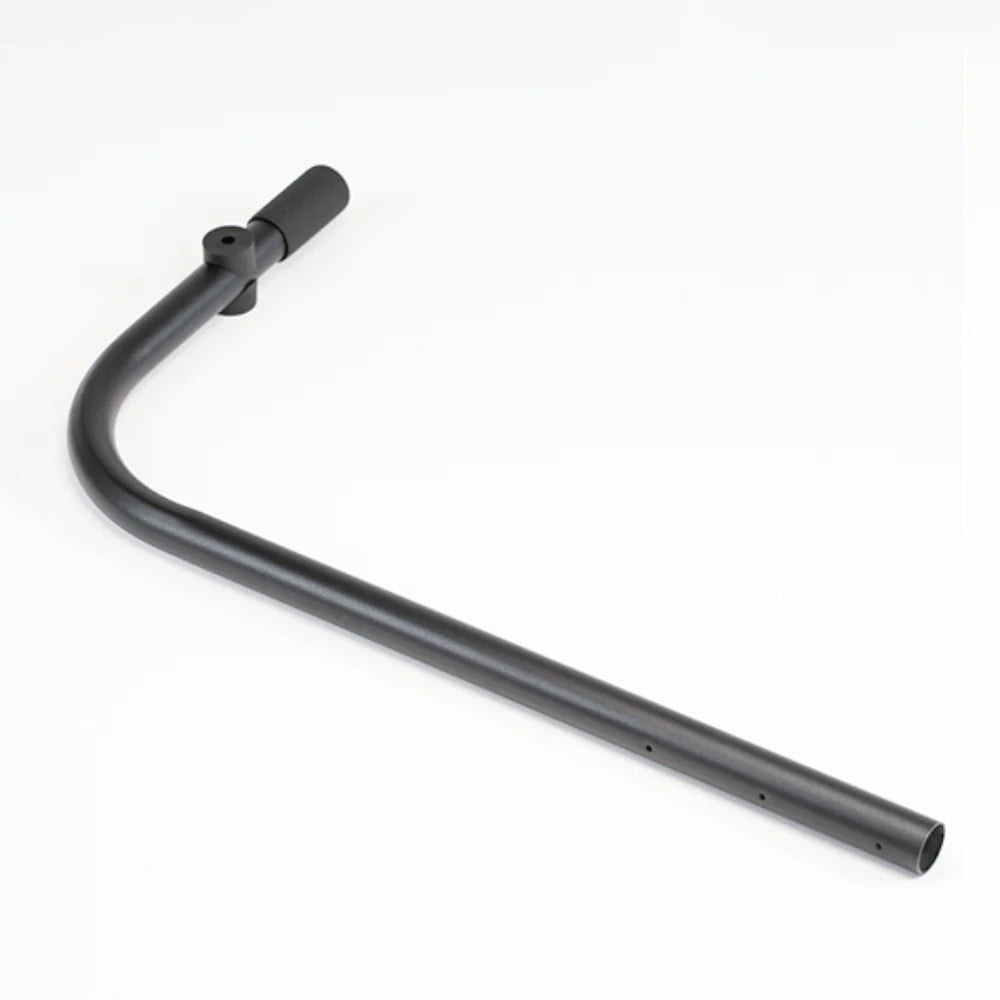

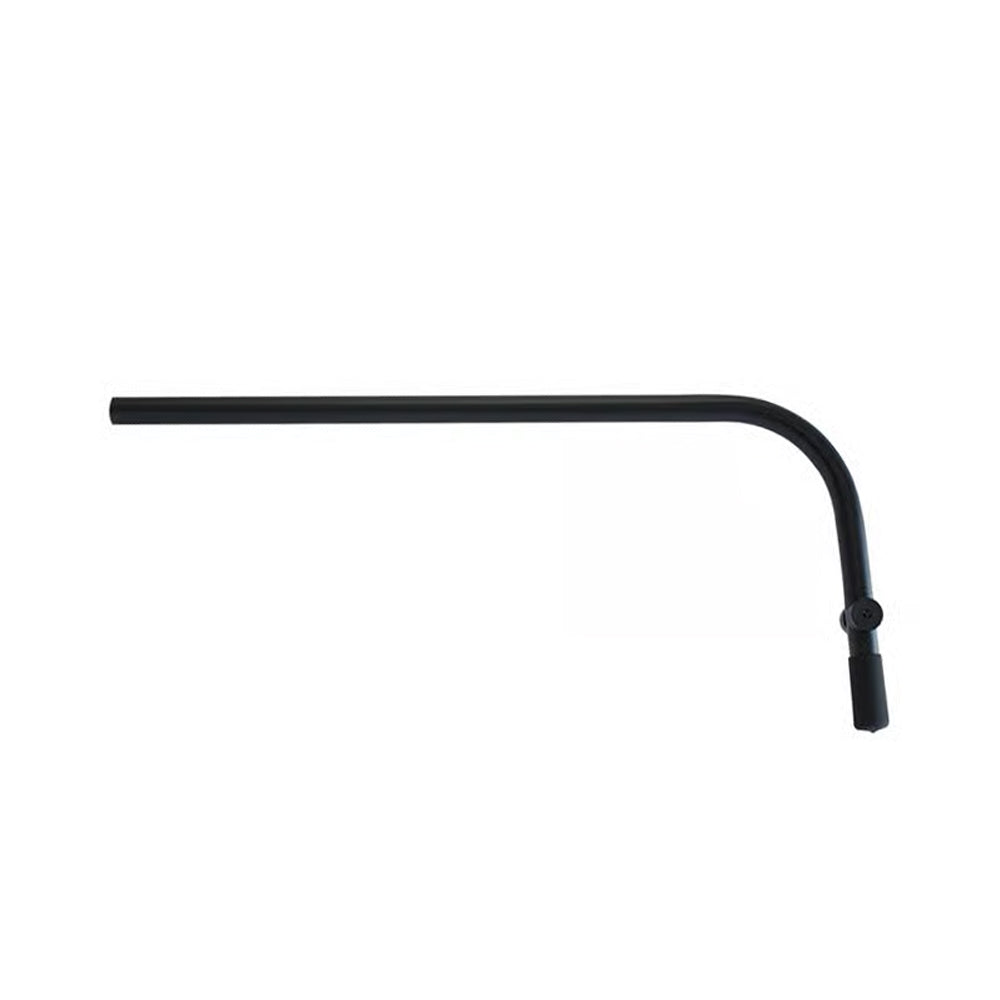

Pivot Arm replacement for CoverMate® I / I Eco lifters (26″ × 13½″). Durable aluminum, padded stop, fits either side.

Free shipping ($100+)

30 Day Returns

Priority Shipping (3-5 days)*

Product Description

This pivot arm (part #100004) is the direct replacement for the bar connecting your CoverMate® I or I Eco lifter to the hot tub bracket.
It is constructed of powder-coated aluminum for corrosion resistance and long service life.
The padded stop prevents wear and noise when fully extended or retracted.
At 26″ × 13½″, it matches the original factory dimensions for fit and function.
It is side-agnostic, so you can install it on either the left or right side depending on your setup.
Replacing a bent or broken pivot arm restores smooth operation without needing to replace the entire lifter unit.

Specifications

Brand : Leisure Concepts

Dimensions: 26" x 13.5" x 1 .25"

Barcode:

FAQ

Q: Which cover lifters is this arm compatible with?

A: It is specifically for CoverMate® I and CoverMate® I Eco lifters.

Q: Does this arm include any brackets or hardware?

A: No. It’s the pivot arm only — mounting bracket, screws, and other parts are not included.

Q: Is the pivot arm side-specific?

A: No. It fits either side (left or right) due to its symmetric design.

Q: Why would I replace this arm?

A: It may bend under heavy loads (e.g. snow), become loose, or suffer wear at the stop. Replacing just this arm is more cost-effective than replacing the entire lifter.

Q: What material is used?

A: Powder-coated aluminum, which balances strength and corrosion resistance.

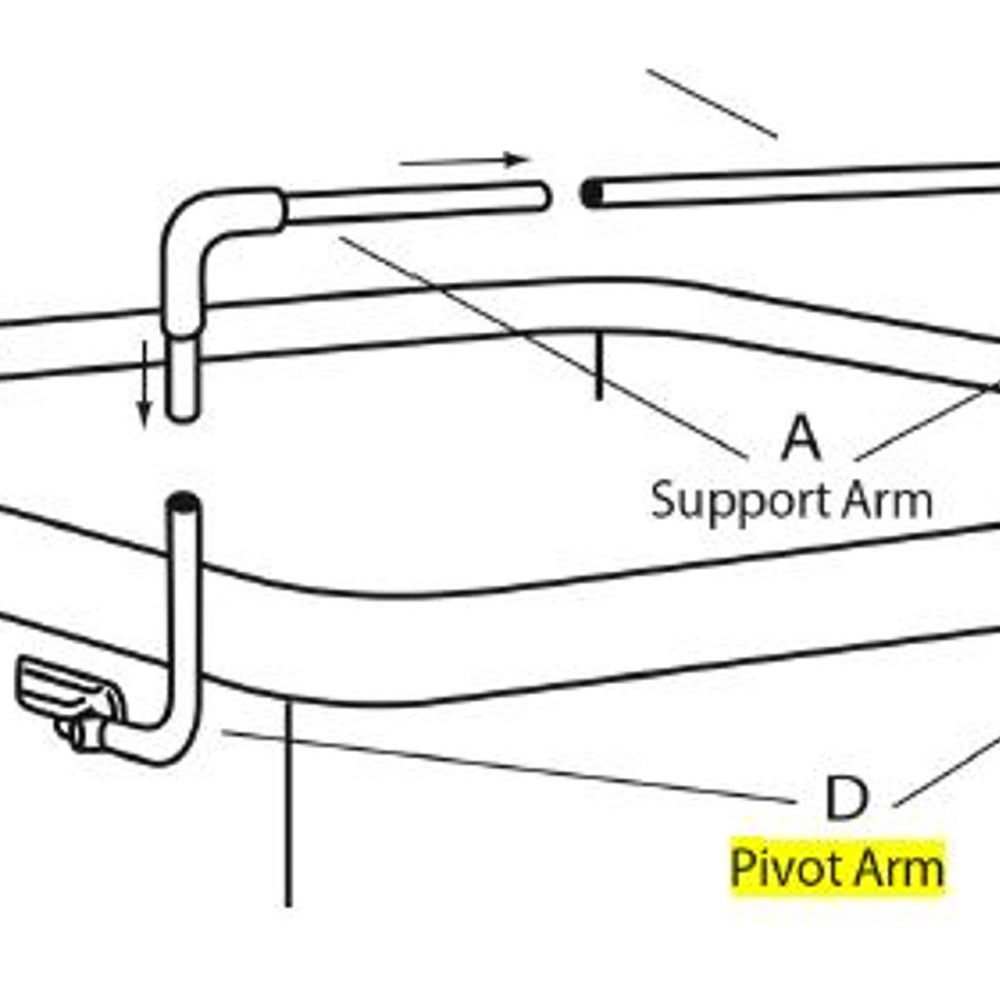

Directions

Place the cover in the closed position and ensure corners are aligned.

Remove the self-tapping screws on both ends of the existing pivot arm.

Unscrew the through-bolt from the mounting bracket.

Slide off the old pivot arm from the support arms.

Slide the new arm into place, align holes, and reinstall the through-bolt.

Reattach the self-tapping screws on both ends.

Test the lift motion slowly to confirm smooth operation and alignment.
