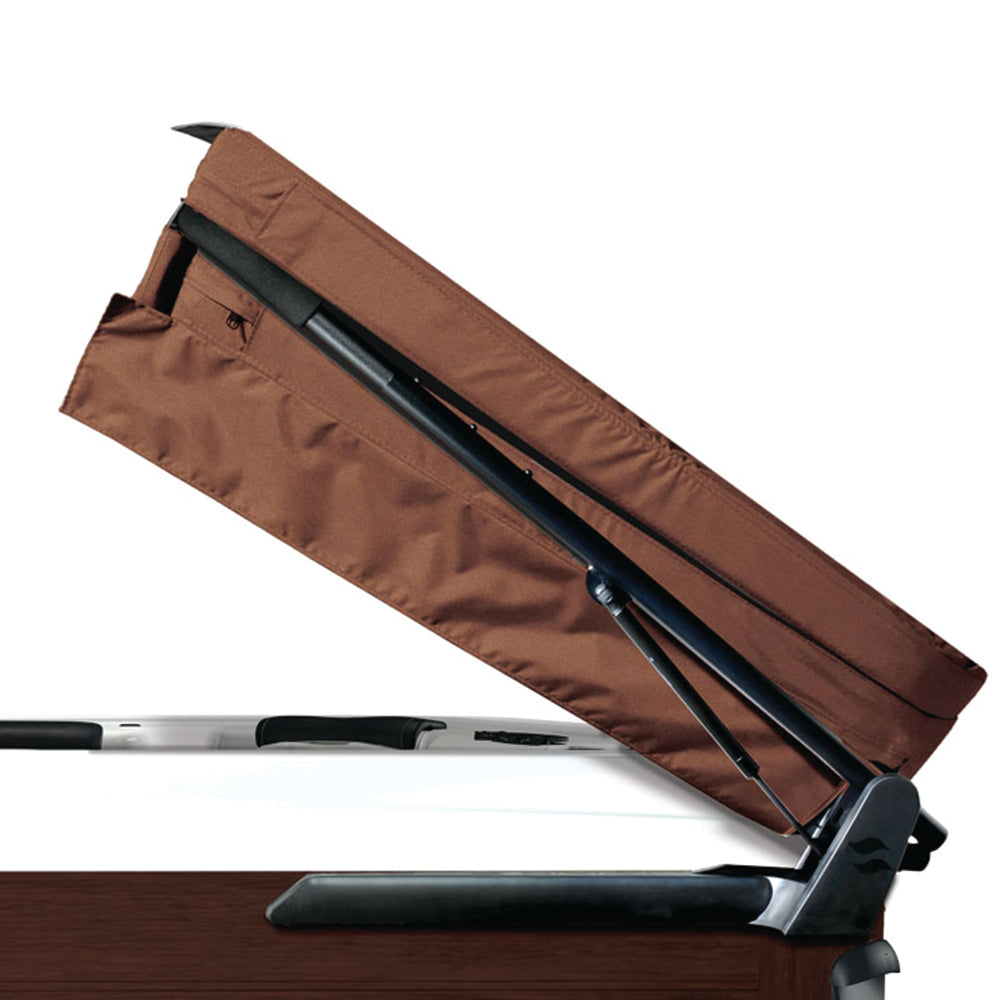

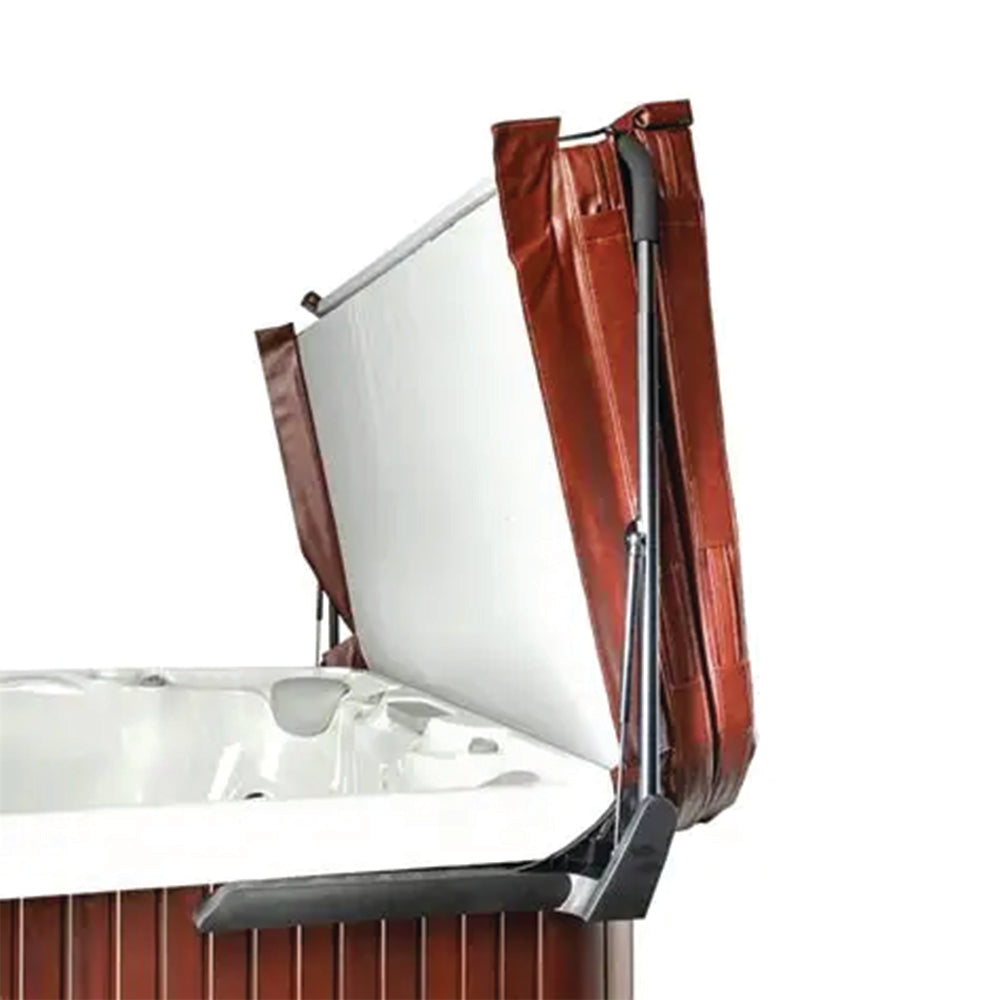

Leisure Concepts® CoverMate® III Extended Pivot Arms – for Large Spas (8‑10 ft) – part #CMIII‑EX PA

Q: Why choose the extended pivot version?

A: It’s designed for spa covers approximately 8 to 10 feet wide or with larger-than-standard hinge spacing that standard lifts can't accommodate.

Q: Is the clearance requirement different from the regular CoverMate III?

A: No, it still requires only 6″ of rear clearance and 5″ on each side—ideal for tight installations.

Q: Does this kit include hydraulic shocks and TowelMate?

A: Yes, the complete assembly includes hydraulic shocks for smooth operation and a TowelMate towel holder for added convenience.

Q: Is this compatible with all spas?

A: It fits most square and rectangular above-ground spas, but always verify your spa’s size and cover dimensions before purchase.

Q: Is drilling required to install the extended pivot arms?

A: Yes, light drilling into the spa cabinet is required to mount the brackets securely.

Position spa cover closed and mark 6″ from spa rear edge for bracket mounting.

Install left and right composite mounting brackets using #10 screws.

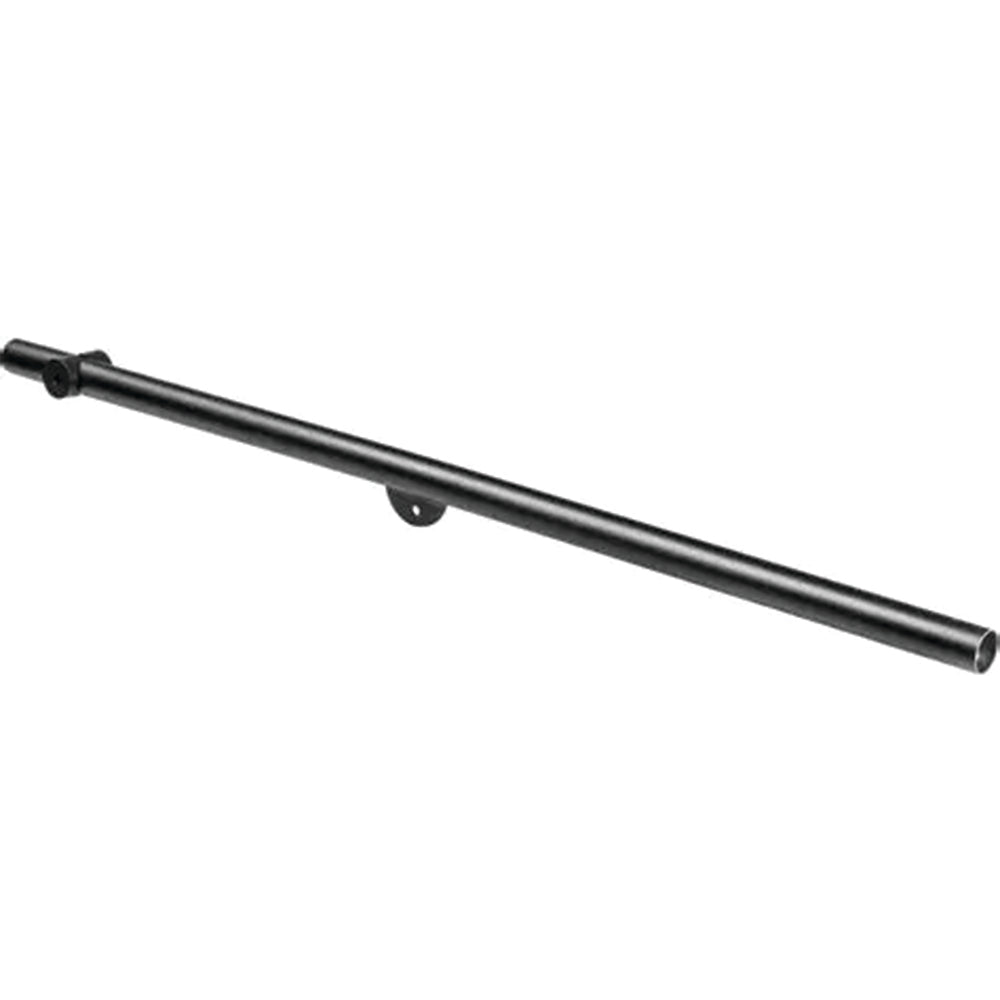

Connect extended pivot arms and support arms—lightly tighten bolts to allow pivot movement.

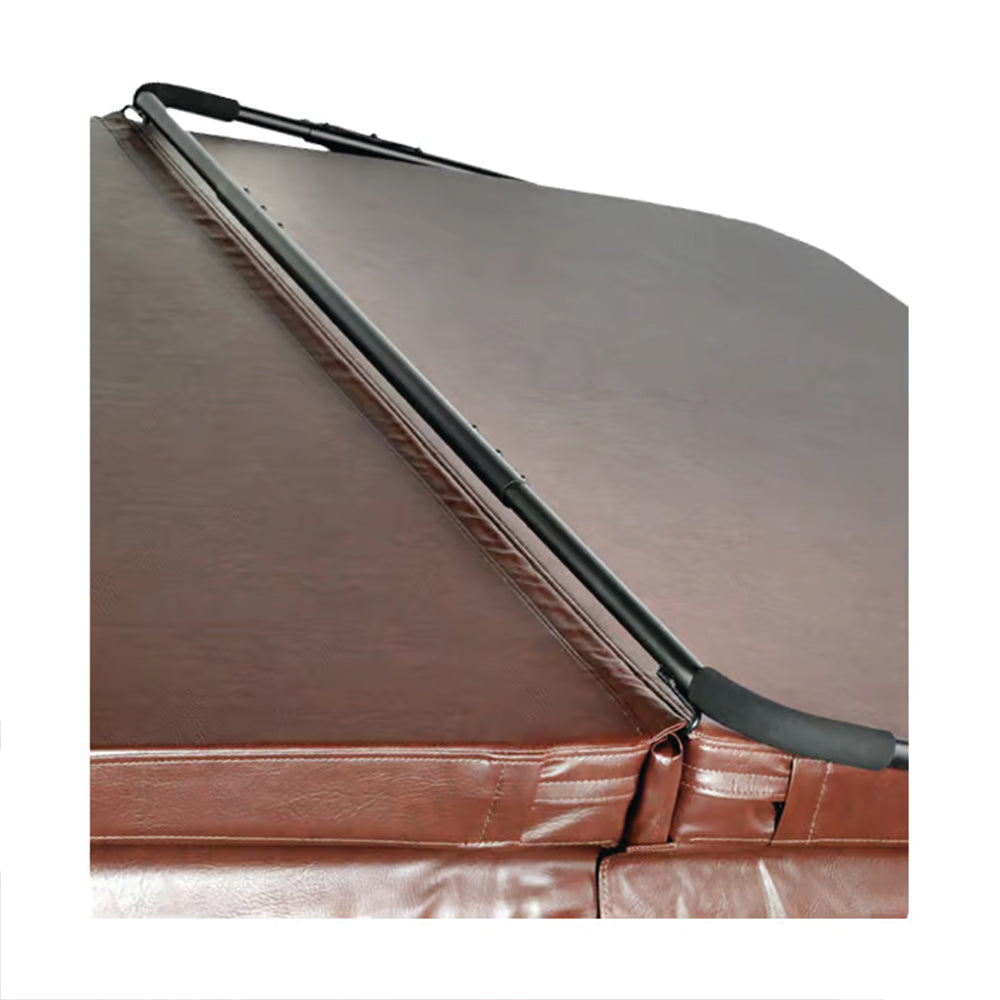

Assemble center coupler and support arms on cover, use retainer clips under cover seam.

Attach hydraulic shocks (body side up), then fasten all bolts securely.

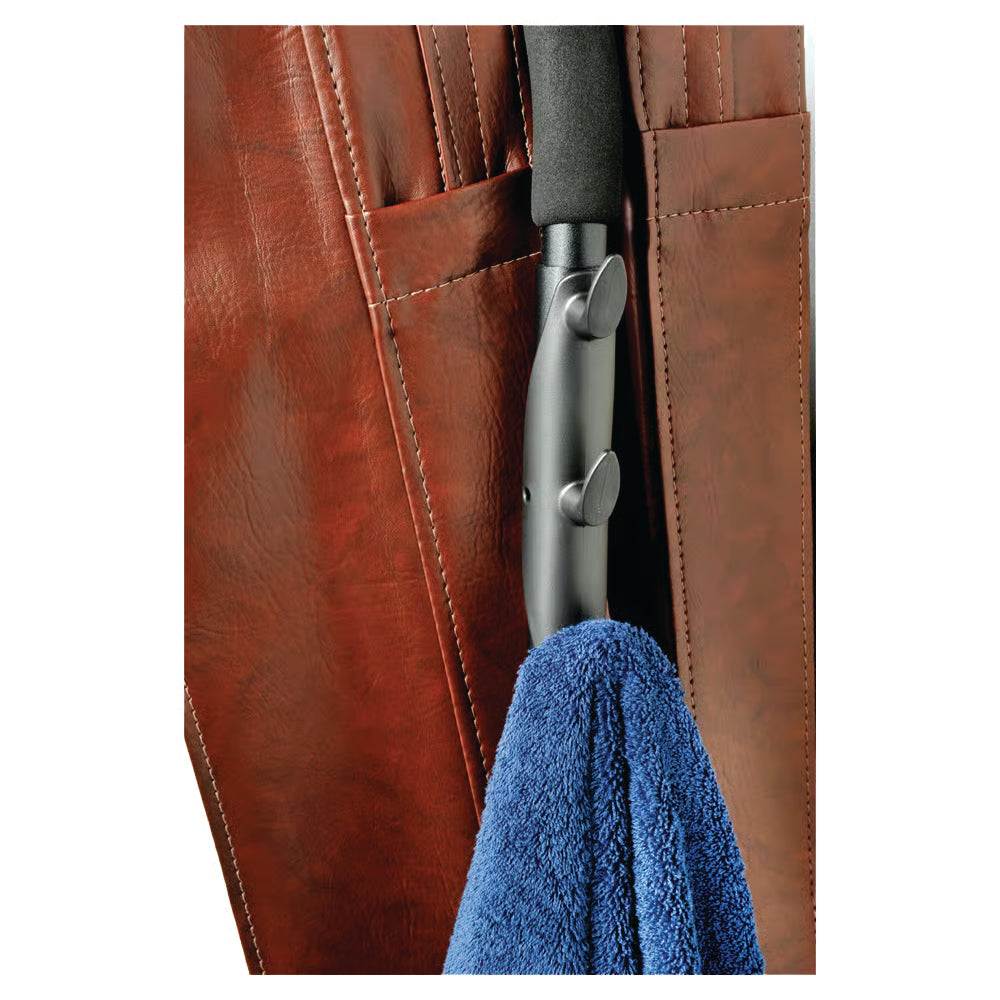

Install TowelMate accessory by snapping in place.

Test lift operation and adjust pivot tension for smooth cover motion.
