CoverMate® Vanish XLRP Cover Lifter – Raised‑Back Spas (Jacuzzi® J‑475/485/495 2020+ Models) – part #CMVAXLRP

$649.00

CoverMate® Vanish XLRP Cover Lifter – Raised‑Back Spas (Jacuzzi® J‑475/485/495 2020+ Models) – part #CMVAXLRP

$649.00

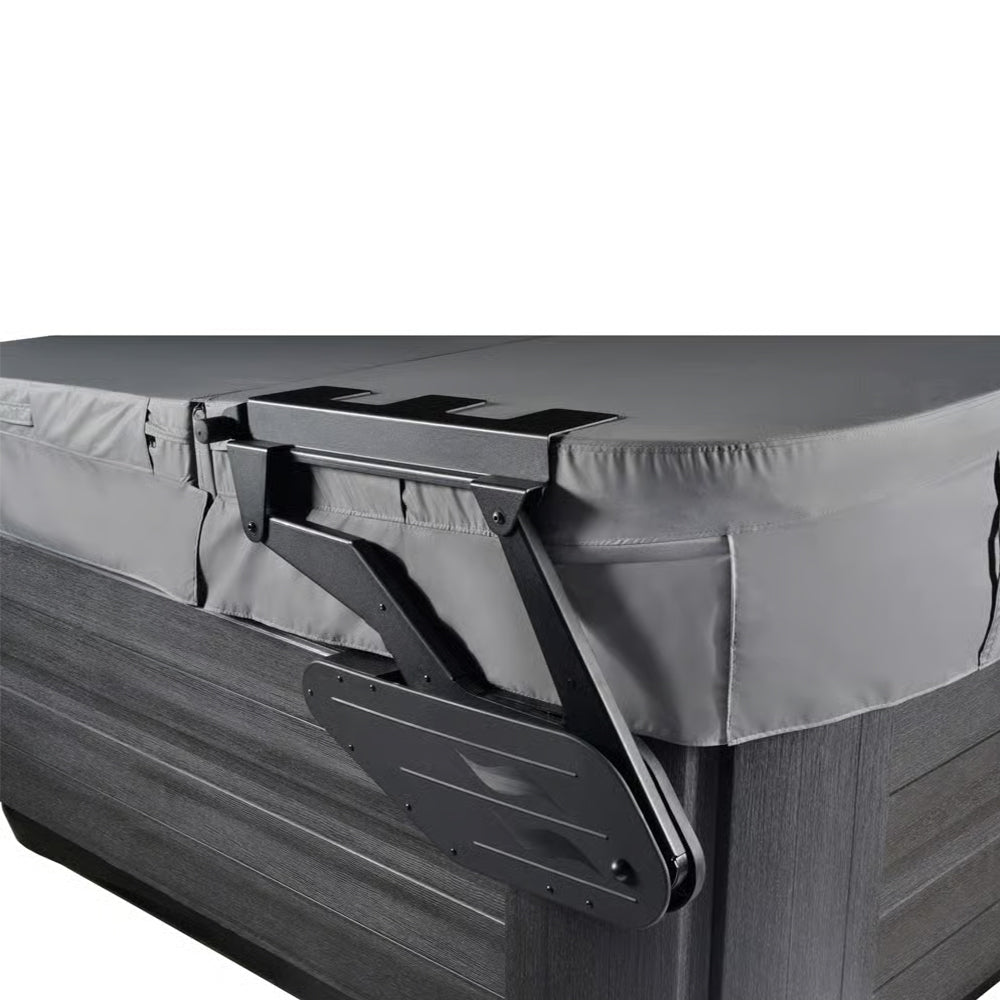

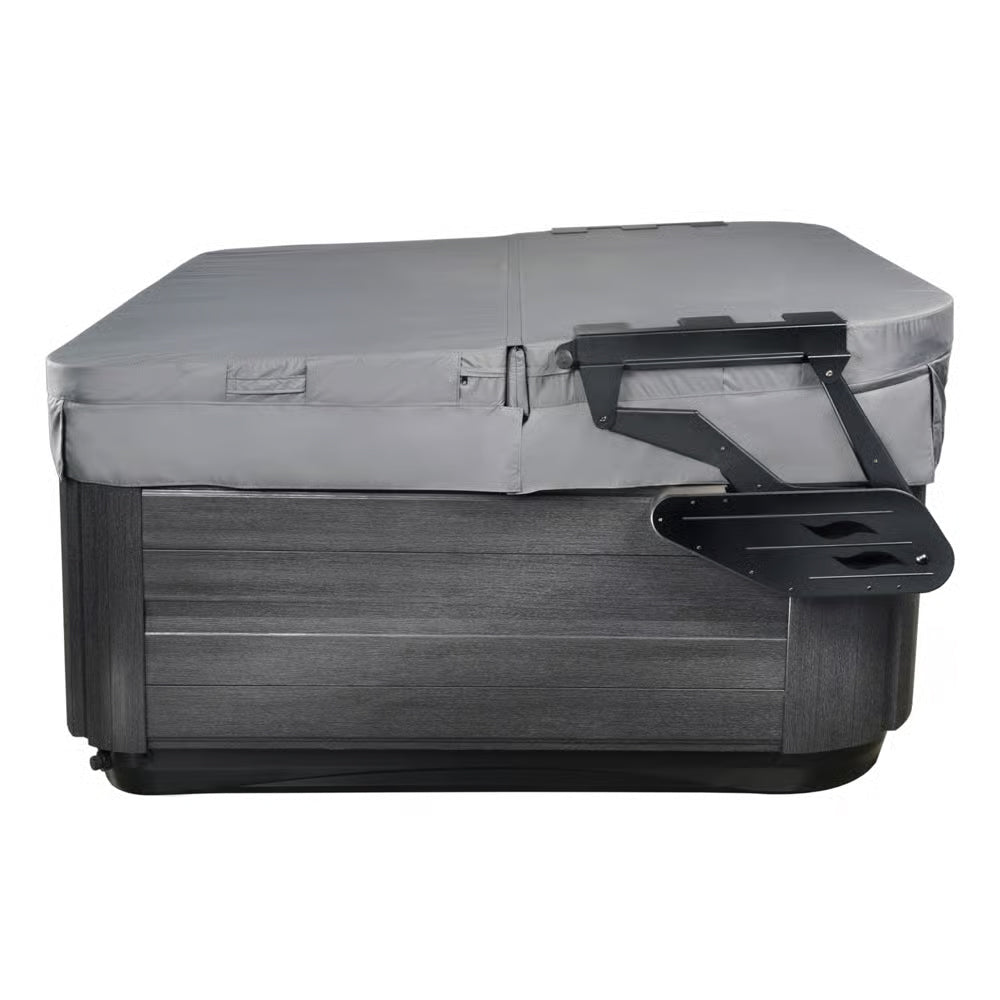

The CoverMate® Vanish XLRP (CMVAXLRP) is an OEM hydraulic spa cover lifter crafted for Jacuzzi® J‑400 Series high raised‑back spas (J‑475/485/495). It offers effortless one-person operation, integrates visually into the spa cabinet, and maintains a clean low-profile loading behind the spa.

Product Description

  • Premium hydraulic spa cover lifter, specifically engineered for raised‑back spas like Jacuzzi® J‑475™, J‑485™, and J‑495™ (2020+), using the Vanish XLRP model number CMVAXLRP

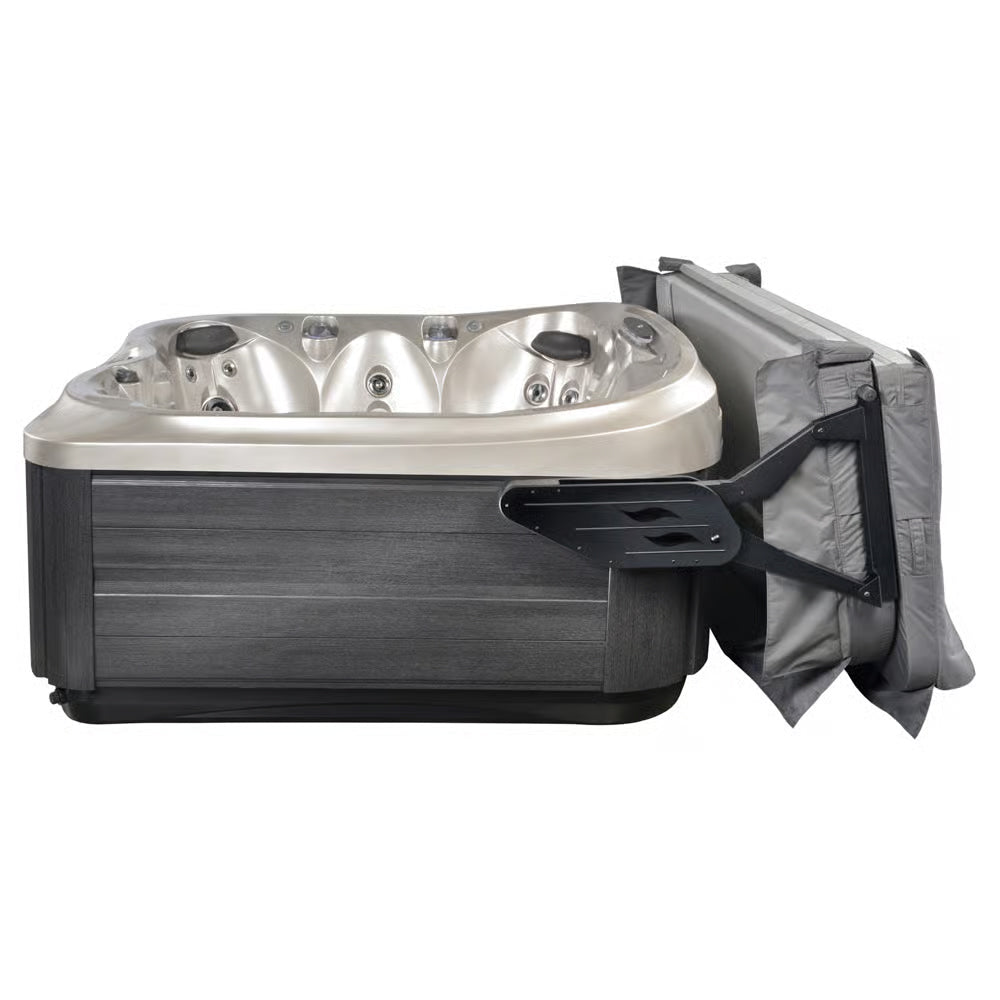

  • Features a low‑profile design that tucks the cover neatly behind the spa for a near-zero obstructed view and an unobstructed 360° surrounding view when open

  • Built from durable glass-reinforced nylon and powder-coated aluminum components, offering long-term corrosion resistance and structural rigidity

  • Includes extended pivot arms, hydraulic shocks, and a corner filler piece (9¾″ × 7¾″) to fit the high raised-back spa shell

  • Complements spas up to ~9 ft in dimension; requires approximately 33.5″ clearance behind and 5″ on each side of the spa

  • Installation is simple using 3M liquid weld or screw‑mount methods with precise placement templates included

Product Specification

Brand Leisure Concepts
SKU CMVAXLRP
Dimensions 46.0″ × 13.0″ × 6.0″
Barcode CMVAXLRP
Weight 23.0 lb

FAQ

Q: Which spa models work with this lifter?

A: Designed exclusively for Jacuzzi® J‑475™, J‑485™, and J‑495™ (2020+).

Q: How much clearance is needed behind the spa?

A: Requires approximately 33.5″ behind plus 5″ on each side for proper operation.

Q: Can I install without drilling the spa shell?

A: Yes—brackets mount to the cabinet. The cover bracket can also use 3M liquid weld for attachment.

Directions

Confirm your spa model is J‑475, J‑485, or J‑495 with raised-back design.

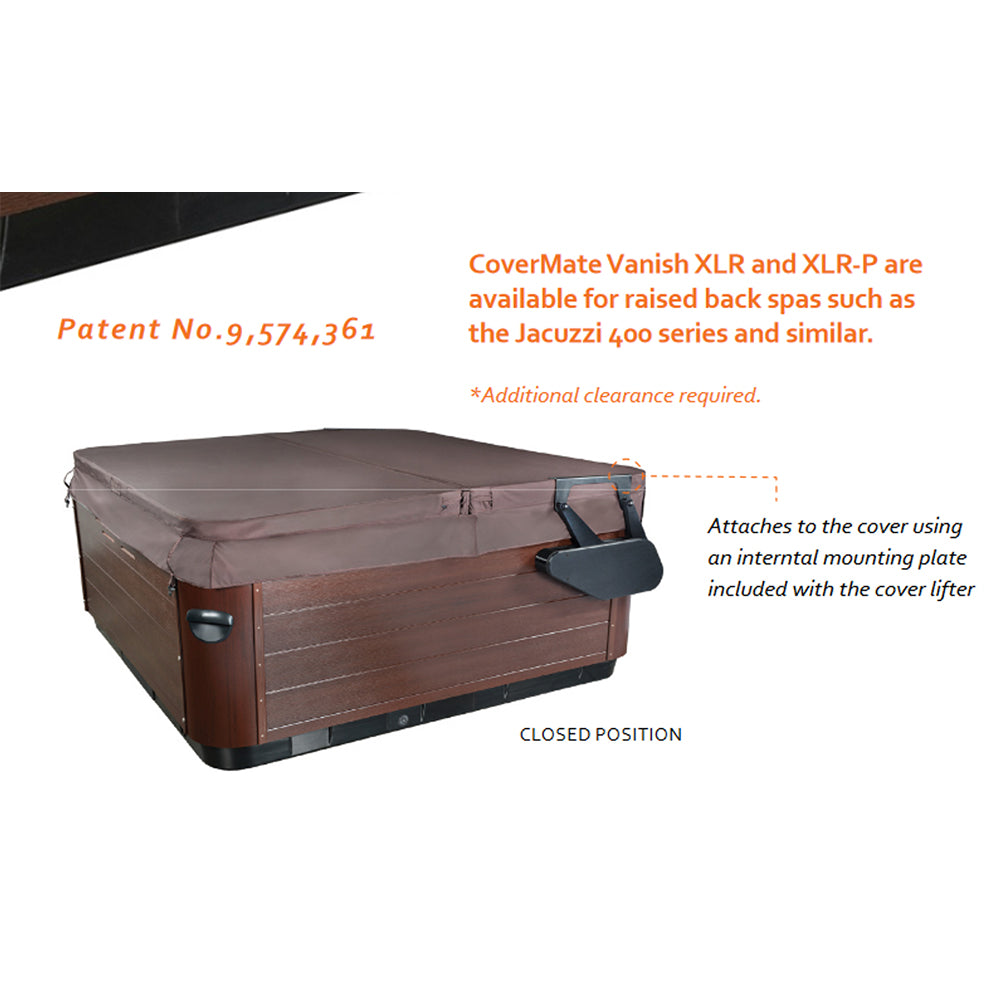

Position aluminum plate insert into spa cover per installation template (~12″ from spa edge).

Install side brackets to spa cabinet as guided; use provided screws.

Attach pivot arms and corner filler piece; secure hydraulic shocks.

Mount cover to lifter and test opening/closing motion for clearance.
